EN 353-1:2014 (CE 0082)
Vertical fall arrest rail / ladder system
The SecuRail Vertical system is an efficient access solution for heights and depths. The shuttle (fall arrester) glides along the central rail and will block the fall of the user immediately while also dissipating the shock generated by the fall. Having a wide range of accessories the system can be configured to fit many types of structures and even existing access ladders.
|

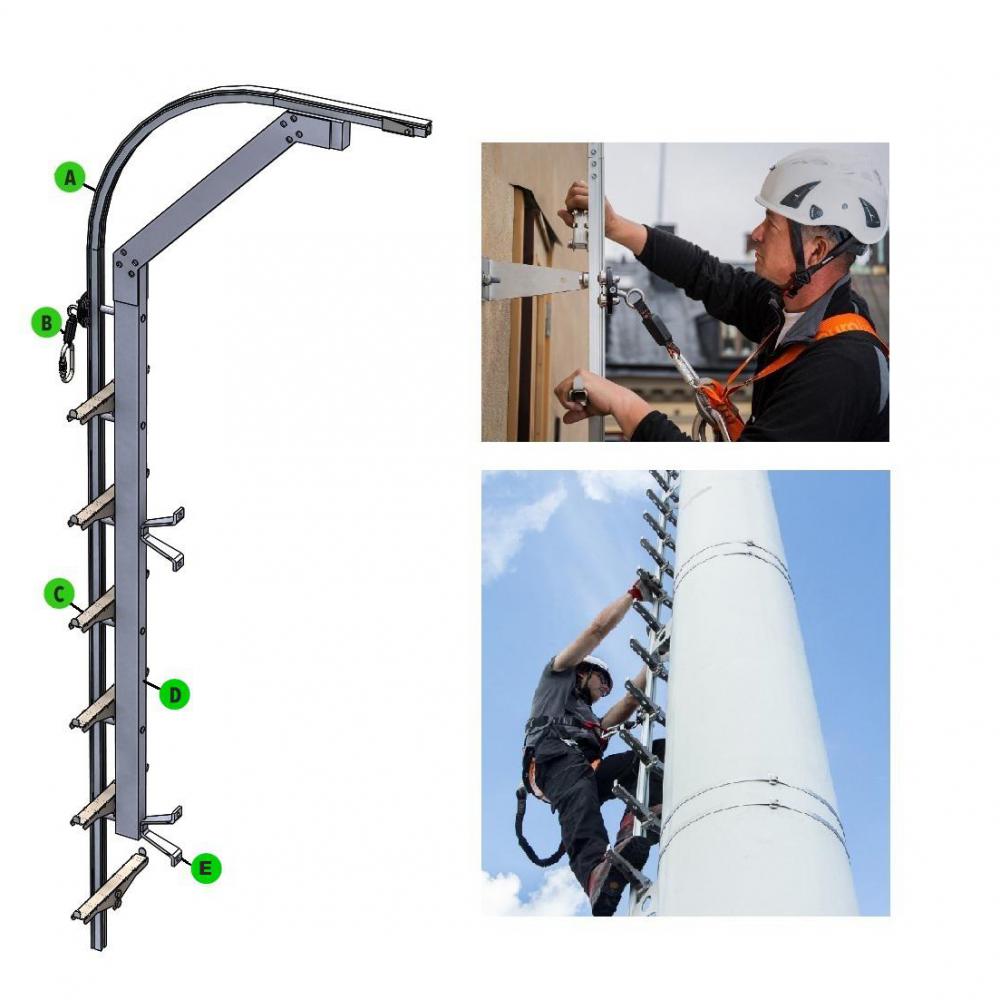

Name |
|
|
A. |
Glide rail |
|
B. |
Shuttle - Gliding fall arrester |
|
C. |
Rung |
|
D. |
Special roof extension structure |
|
E. |
Support bracket |
Certification: EN 353-1:2014
Use: 1 person;
Materials: alluminium alloy (glide rail), stainless steel (rungs);
Inspections: at least once a year / immediately after the system has been involved in an incident;
Ladder height: not limited;
Installation:
- on a supporting structure (eg: mast, concrete wall, steel structure etc.);
- on an existing access ladder (onlly the fall arrest rail is installed in this case);
Note: These systems are designed and configured to suit the needs for protection and to respect the spatial limitations existing at a particular workplace (the actual place of installation). Thus, prior to installation, it is necessary to do an on-site risk assessment and to carry out measurements.
Keywords: fall arrest rail / ladder system, energy absorber, EN 353-1
