EN 353-1:2014 + A1:2017 (CE 0158)
Integrated fall arrest-ladder system
The Twinstop® system is an efficient acces solution for heights and depths. The shuttle (fall arrester) glides along the central rail and will block the fall of the user immediatelly while also dissipating the shock generated by the fall. Due to its simple and robust design it offers the same performances even in harsh working conditions (eg. cement, oil, icing) thus protecting the user for the entire climb / descent.
|

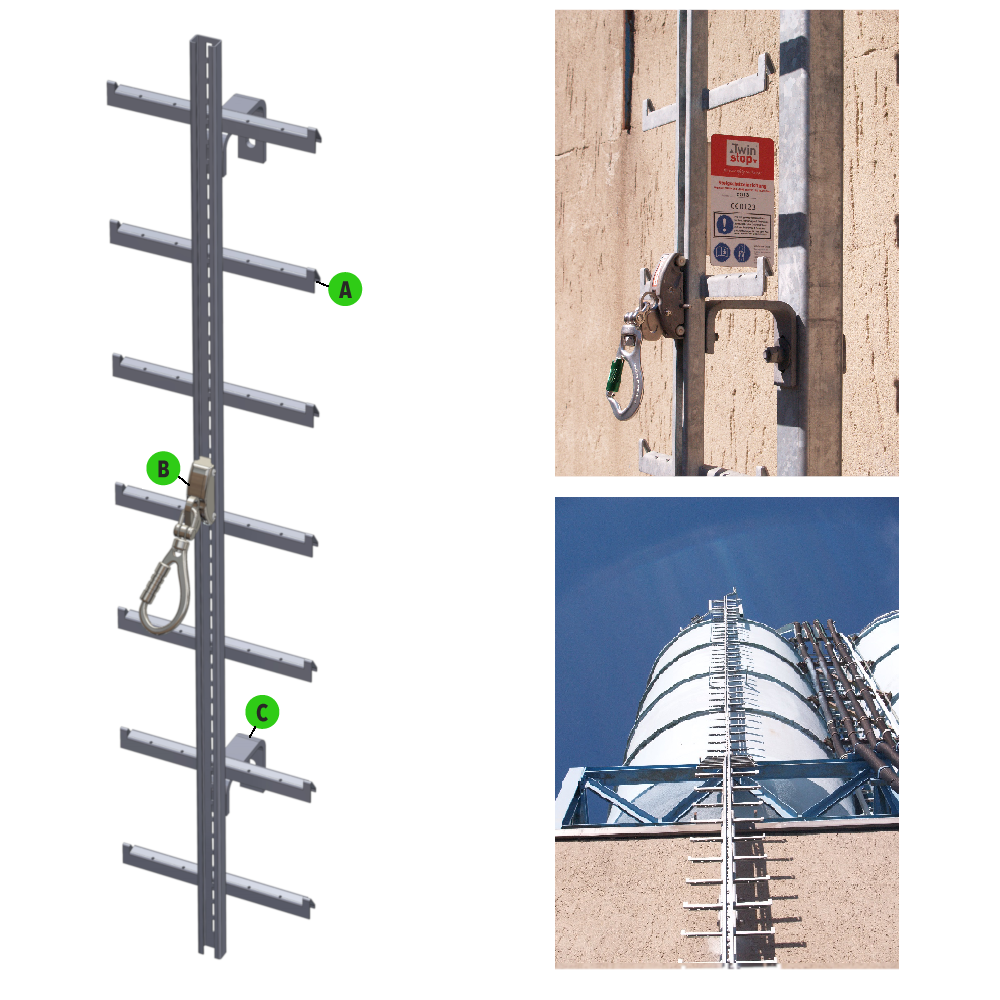

Name |
|
|
A. |
Ladder with integraded glide rail |
|
B. |
Shuttle - Gliding fall arrester |
|
C. |
Support bracket |
Certification: EN 353-1:2014 + A1:2017
Use: the system can be used by many users simultaneously, while keeping a safe distance from each other of minimum 3,36m! (Max. 1 person / Shuttle)
Materials: Stainless steel (shuttle), zinc plated steel (ladder-rail system)
Inspections: at least once a year / immediately after the system has been involved in an incident
Ladder height: not limited
Note: These systems are designed and configured to suit the needs for protection and to respect the spatial limitations existing at a particular workplace (the actual place of installation). Thus, prior to installation, it is necessary to do an on-site risk assessment and to carry out measurements.
Keywords: Integrated fall arrest-ladder system, energy absorber, EN 353-1
