TXS

TECHNICAL DATA:

Physical

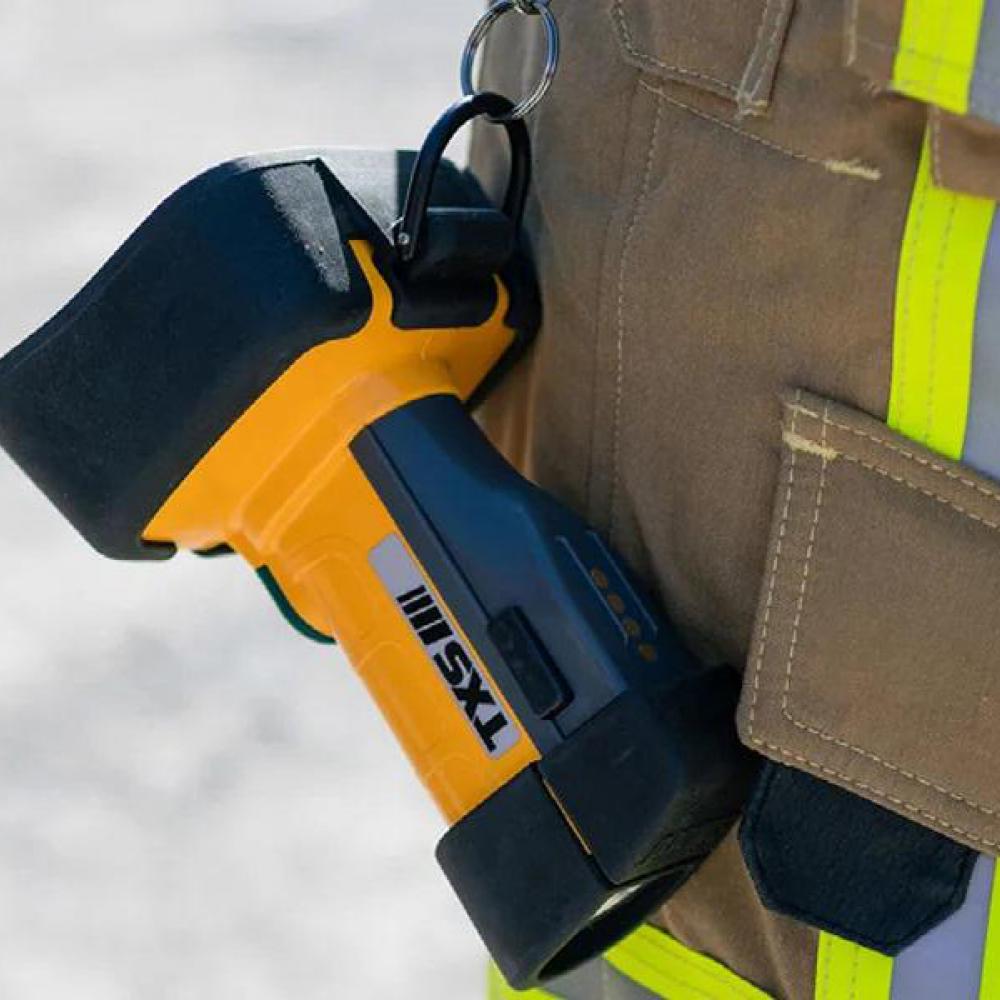

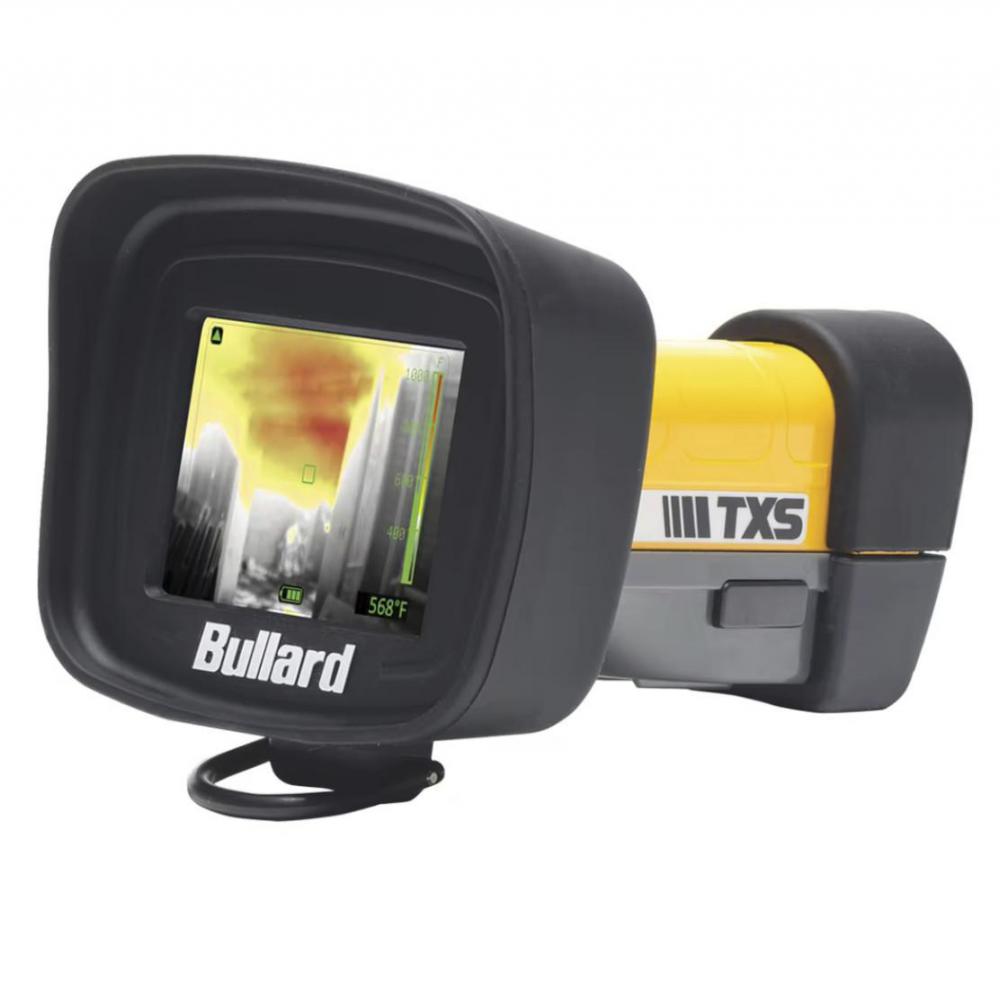

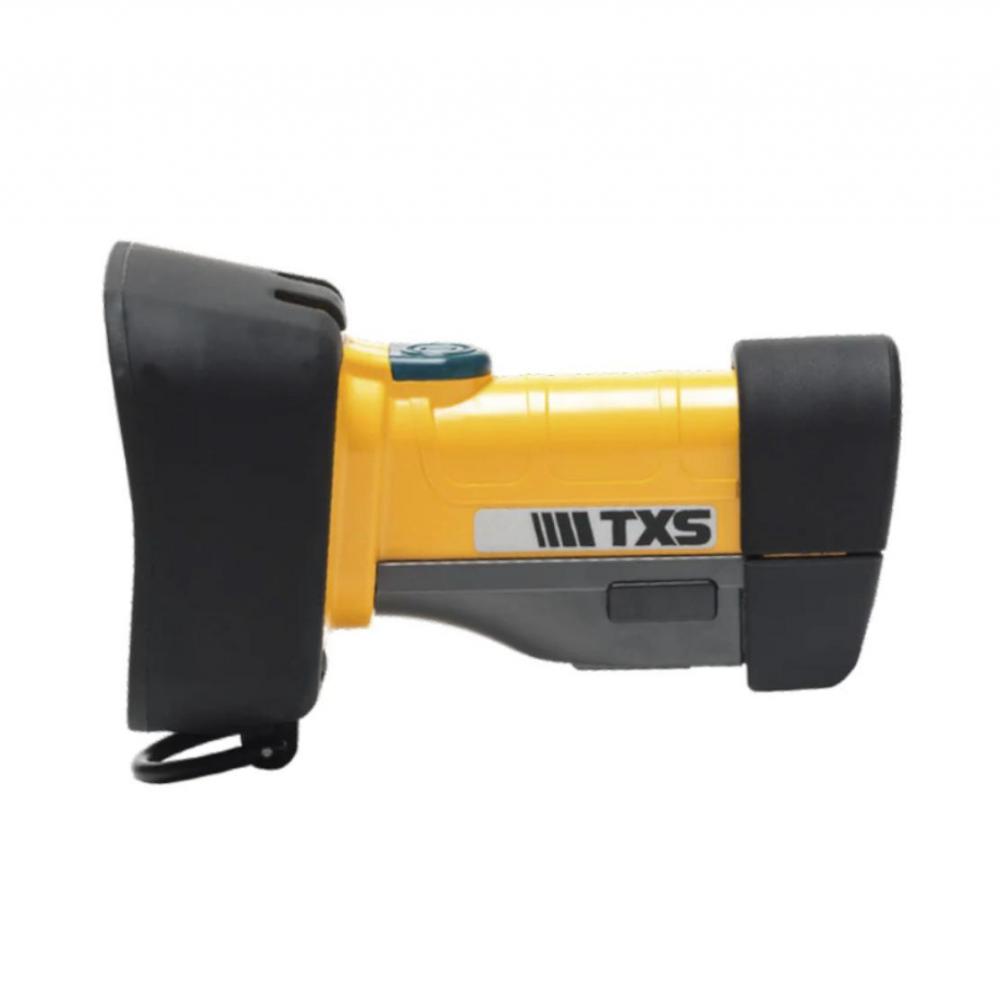

• Configuration: Small Handheld Thermal Imager
• Weight (w/ Battery): 0.75 kg
• Dimensions: L 180 mm x W 120 mm x H 117 mm
• Housing Material: PPSU Thermoplastic
• Housing Color: Melon Yellow (RAL 1028)
• Battery Color: Anthracite grey (RAL 7016)
• Form Factor: Ergonomic low-strain grip with intuitive handling

Electrical
• Power Source: Lithium-ion rechargeable and replaceable Battery
• Battery Type: Field replaceable without tools
• Battery Capacity: 3500mAh
• Start-up Time: <12 seconds
• Operating Time: Approx 6 hours at 20°C in routine conditions
• Recharge Time: Approx 3h30 from fully depleted

Infrared Detector
• Detector Type: Microbolometer
• Detector Sensing Material: Vanadium Oxide
• Detector Resolution: 320x240
• Spectral Response: 7,5 μm – 13,5 μm
• Update Rate: 30Hz
• NETD: <60mK
• Dynamic Range: 550°C
• Pixel Pitch: 12 μm

Lens
• Field of View: 40° V x 50° H
• Focus: 0.8 m to ∞
• Speed: f/1.1
• Protective Window: Glove-cleanable germanium window with anti-reflective coating

Display
• Type: Digital, Liquid Crystal Display (LCD)
• Size: 3.5"/89mm Diagional TFT Active Matrix
• Viewing Angle (Typical): Top = 60°, Bottom = 40°, Left / Right = 60°
• Image Resolution: 320x240
• Protective Cover: Polycarbonate with a UV and abrasion* resistant surface (*according to NFPA 1971-52)

Standard Features
• Gain Modes: Shutterless automatic switching between low and high gain mode, dependent on scene temperature
• Temperature Measurement: Numeric and bar style
• Colorization: White-Hot and Super Red Hot (yellow-orange-red gradient) for temperatures above 260°C

Optional Features & Accessories (if so equipped)
• Retract Strap: Retractable lanyard

Charging Systems
• USB charging: USB charging over Micro-USB with wall plug adapter (standard)

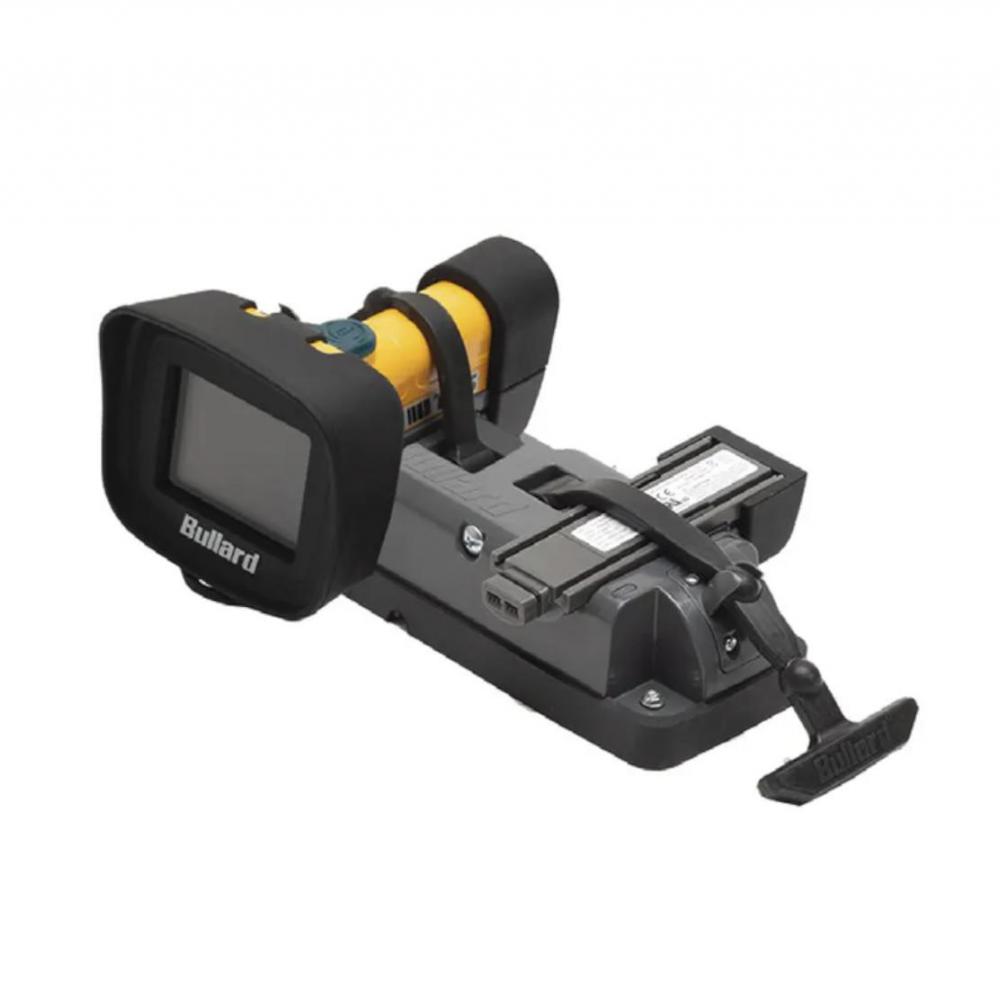

• Truck Mount or Deskmount Charger: Two-bay charger for either two batteries or two imagers, or one battery and one imager for truck or office use (optional)

Performance
• Cold Resistance -20°C: Continued operation
• Heat Resistance 150°C: 15 minutes of continued operation
• Heat Resistance 260°C: 5 minutes of continued operation
• Impact Resistance: Functional after 2 meter drop on concrete
• Safety: IEC 62368-1; IEC 62368-3; IEC62133-2; IEC 60335-2-29
• Ingress Protection: IEC 60529 IP67 (imager and battery)
• EMC: FCC part 15b; CISPR32/EN55032/IEC61000-6-3; CISPR24/EN55035/IEC61000-6-1
• Battery Pack: IEC 62133-2; UN 38.3
• Truck Mount Charger: Designed to meet NFPA 1901 and DIN EN 1846-2:2013-05; IEC 62368-1
• Environmental: Prop 65; RoHS; REACH; PFAS
• Storage Temperature: Recommended from --20°C to 40°C

Service & Warranty
• Imager: Five (5) years
• Battery: Two (2) years
• Software: User upgradable firmware (via Micro-USB)
